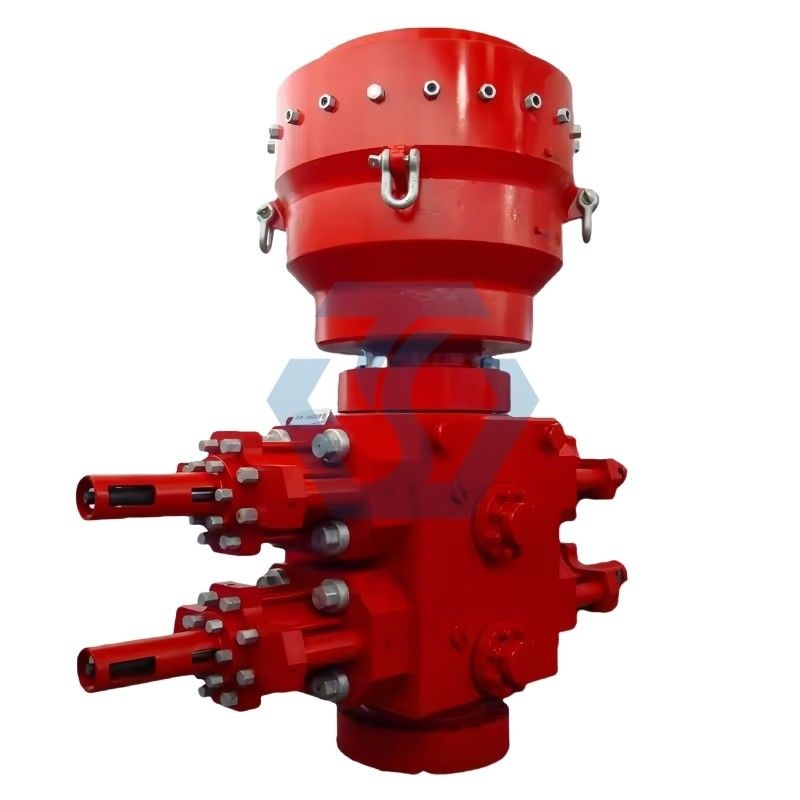

7-1/16 Well Drilling Wellhead Control Blowout High Precision Prevent Annular BOP

________________________________________

Product Description:

The annular blowout preventer produced and sold by our company Huichi Petro is an important well control safety device, which is used to close the wellhead in an emergency during drilling, well repair, oil testing and other operations to prevent oil and gas blowout accidents.

________________________________________

Working principle and function:

The annular blowout preventer is operated by a hydraulic control system. Its working principle is that when it is closed, the high-pressure oil pushes the piston upward, and the piston cone squeezes the rubber core, so that the rubber core is squeezed to the center of the wellhead until it holds the drill bit or fully closes the wellhead to achieve the purpose of sealing the well. When it is necessary to release the seal, operate the reversing valve of the hydraulic control system to make the high-pressure oil push the piston downward, close the cavity to release pressure, and the rubber core returns to its initial state under the action of its own elastic force, and the annular space at the wellhead is opened.

The annular blowout preventer produced and sold by our company Huichi Petro has multiple functions: when there is a pipe string in the well, it can close the annular space formed by the pipe string and the wellhead; when the well is empty, it can completely seal the wellhead; in the process of drilling, milling, logging and salvaging fallen objects in the well, if overflow or blowout occurs, it can seal the space formed by the square drill rod, cable, wire rope and tools for handling accidents and the wellhead, providing time and conditions for subsequent emergency treatment; with the cooperation of the pressure reducing and regulating valve or small energy accumulator, it can force the 18° non-fine buckle butt-welded pipe string joint to be lifted and lowered; in case of severe overflow or blowout, it is used to cooperate with the gate blowout preventer and throttling manifold to achieve soft well closing. The annular blowout preventer can also be used to assist some special drilling operations, such as forced lifting and lowering, no well suppression operations, etc. In these operations, the annular blowout preventer can provide reliable sealing to ensure the smooth progress of the operation.

________________________________________

Notes for use:

When using an annular blowout preventer, you need to pay attention to the following: if a blowout occurs when there are drilling tools in the well, you can first use the annular blowout preventer to control the wellhead, but try not to close it for a long time to prevent the rubber core from being damaged. Do not use it to seal an empty well unless in special circumstances. After each well opening, you must check whether it is fully opened to prevent the rubber core from being damaged.

________________________________________

Product composition:

The blowout preventer produced and sold by our company Huichi petro consists of five main parts: shell, top cover, support ring, piston, and rubber core. The small number of parts makes the blowout preventer more reliable and easy to maintain, and it is very convenient to disassemble and assemble evenly on site.

________________________________________

Overview of product features:

1. Compliance with connection standards: All connection specifications strictly follow API SPEC 6A and API SPEC 16A (clamp) standards to ensure the safety and reliability of the connection.

2. Wide range of sealing objects: Designed to seal drilling tools of various shapes and sizes, including square drill pipes, drill pipes, drill pipe joints, drill collars, casings and cables, etc. All parts are original or interchangeable, which improves operational flexibility and efficiency.

3. Compact and reliable structural design: The structure is simple and clear, and the compact design effectively saves space. The piston adopts a unique "Z"-shaped radial section design to shorten the stroke, reduce the height, and has a built-in circulating water cooling system to improve the durability of the equipment.

4. Wide adaptability: It is suitable for a variety of specifications and can seal various pipe shapes. It has better performance when used with annular blowout preventers.

5. Multifunctional well control capability: In the absence of drilling tools, it can fully close the wellhead to ensure well control safety. When used with a buffer energy storage device, it can realize the forced drilling and drilling operation of 18°/35° non-fine buckle butt welding joints, improving operating efficiency.

6. Reasonable structure and easy operation: The structural design is reasonable, the operation is simple, the plastic rubber core has a long service life, and the maintenance cost is reduced.

________________________________________

Product model parameters:

________________________________________

Product application:

This product is suitable for coal mines, oil field drilling, power industry, sanitation engineering, fire engineering operations, geological exploration, etc.

________________________________________

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.
